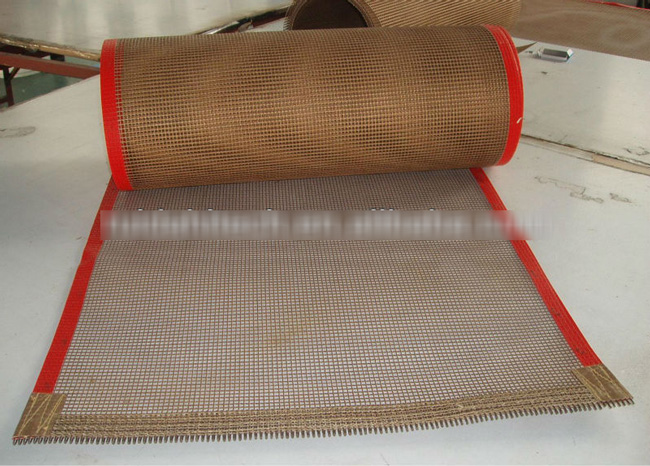

Teflon coated fiberglass mesh conveyor belt,teflon mesh,BBQ grill mat
Standard or Nonstandard: Nonstandard
Material: Ptfe coated fiberglass
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Ruida ptfe mesh
Color: brown, black, and others
Packaging & Delivery
Packaging Details: ptfe coated mesh belt is packed by bubble paper, carton, pallet
Delivery Detail: 3-10days to deliver ptfe coated mesh belt
Specifications
1. width upto 4m;
2. high temperature resistance;
3. chemical resistance;
4. different colors & mesh available;
PTFE(Teflon) coated fiberglass open mesh belt select fine fiberglass, Kevlar or Nomex as basic weaving material, coated with excellent PTFE(Teflon) resin to make it into various of PTFE(Teflon) conveyor belt.
Usage:
PTFE(Teflon) open mesh belts are used in screen printing to transport imprinted materials through drying ovens and cooling chambers. These belts are long lasting and perform well over a wide range of operating temperatures.
Fiberflon belt fabrication department can supply a wide variety of splices and edge reinforcements in order to respond customer’s specific applications.
Properties:
1. Outstanding temperature resistance (from -170ºC to +260ºC)
2. Resistant to corrosive agents
3. Low thermal mass
4. Controlled porosity
5. Superior non-stick surface, easy to clean
6. High dielectric strength
7. Dimensional stability
8. Resistance to UV, IR and HF
9. Non-toxic
10. Superior tracking
Styles and Specifications:
|
Item |
Mesh Size |
material |
Thickness |
Weight |
Temperature resistance |
Max Width |
Tensile Strength |
|
RD6001 |
1x1mm |
fiberglass |
0.5mm |
370g/m² |
-70-260°C |
4000mm |
310/290N/cm |
|
RD6002 |
2x2mm |
fiberglass |
0.7mm |
450g/m² |
-70-260°C |
4000mm |
350/310N/cm |
|
RD6003 |
4x4mm |
fiberglass |
1.0mm |
400g/m² |
-70-260°C |
4000mm |
390/320N/cm |
|
RD6004 |
4x4mm |
fiberglass |
1.0mm |
450g/m² |
-70-260°C |
4000mm |
390/320N/cm |
|
RD6007 |
4x4mm |
Kevlar + fiberglass |
1.2mm |
600g/m² |
-70-260°C |
4000mm |
895/370N/cm |
|
RD6008 |
4x4mm |
fiberglass |
1.2mm |
580g/m² |
-70-260°C |
4000mm |
560/360N/cm |
|
RD6010 |
4x4mm |
Kevlar |
1.0mm |
500g/m² |
-70-260°C |
4000mm |
900/600N/cm |
|
RD6012 |
4x4mm |
fiberglass |
1.0mm |
550g/m² |
-70-260°C |
4000mm |
395/370N/cm |
|
RD6013 |
10x10mm |
fiberglass |
1.0mm |
450g/m² |
-70-260°C |
4000mm |
360/300N/cm |
|
RD6014 |
0.5x1mm |
fiberglass |
0.5mm |
420g/m² |
-70-260°C |
4000mm |
310/290N/cm |
|
RD6015 |
2x2.5mm |
fiberglass |
0.9mm |
600g/m² |
-70-260°C |
4000mm |
390/320N/cm |
