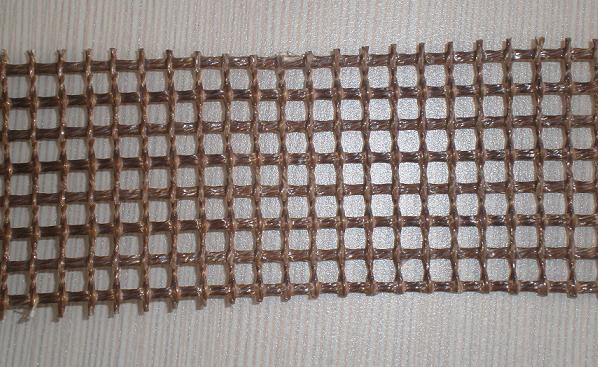

Edge reinforced by silicone fabric ptfe mesh conveyor belt

Certificates

We will send the quotation to you within 24 hours.

< Prev Product Next Product > Product List
Introductions

Quick Details

Place of Origin: Jiangsu, China (Mainland)

Brand Name: Ruida fiberglass fabric

Model Number: RD6001-RD6015

Application:  Heat Insulation Materials

Weight: 400-600G

Width: 4M

Mesh Size:1*1;1*0.5;2*2.5;4*4;10*10

Weave Type: Plain Woven

Yarn Type: E-Glass

Alkali Content: Alkali Free

Standing Temperature: -70°C to +260°C


Packaging & Delivery
Packaging Details: Conveyor Belt is packed in bubble paper, carton, pallet
Delivery Detail: 2-10 days after Conveyor Belt ready

Conveyor Belt
1.Manufacturer,stocked
2.Super non-sticky character, high temperature resistance.
3.FDA/SGS/REACH/PUNY tested

Conveyor Belt  Styles and Specifications:

Item

Mesh Size

material

Thickness

Weight

Temperature resistance

Max Width

Tensile Strength

RD6001

1x1mm

fiberglass

0.5mm

370g/m²

-70-260°C

4000mm

310/290N/cm

RD6002

2x2mm

fiberglass

0.7mm

450g/m²

-70-260°C

4000mm

350/310N/cm

RD6003

4x4mm

fiberglass
(black)

1.0mm

400g/m²

-70-260°C

4000mm

390/320N/cm

RD6004

4x4mm

fiberglass

1.0mm

450g/m²

-70-260°C

4000mm

390/320N/cm

RD6007

4x4mm

Kevlar + fiberglass

1.2mm

600g/m²

-70-260°C

4000mm

895/370N/cm

RD6008

4x4mm

fiberglass

1.2mm

580g/m²

-70-260°C

4000mm

560/360N/cm

RD6010

4x4mm

Kevlar

1.0mm

500g/m²

-70-260°C

4000mm

900/600N/cm

RD6012

4x4mm

fiberglass
(black)

1.0mm

550g/m²

-70-260°C

   4000mm

395/370N/cm

RD6013

10x10mm

fiberglass

1.0mm

450g/m²

-70-260°C

4000mm

360/300N/cm

RD6014

0.5x1mm

fiberglass

0.5mm

420g/m²

-70-260°C

4000mm

310/290N/cm

RD6015

2x2.5mm

fiberglass

0.9mm

600g/m²

-70-260°C

4000mm

390/320N/cm

Conveyor Belt select fine glassfiber or Kevlar as basic weaving material, coated with excellent PTFE resin to
make it into various PTFE open mesh conveyor belts

Conveyor Belt Applications:
1. Drying machine for non-woven textile, textile printing, silk-prnting and dyeing machine.
2. Shrinking machine for garment fabric, high-frequency and UV dryer.
3. Conveyer belt for hot-air dryer, various of food baking, quick-frozen machines.
4. Oiling machine for paper glazing and waxing, plant engineering.
5. Seperating sheet for hardboard production etc.

Conveyor Belt Properties
1.Stable dimension, high intensity, elongation coefficient less 5%.
2.Good temperature resistance, 24 hours working temperature -60°C~300°C.
3.Low coefficient of friction and dielectric constant, good insulating ability.
4.Non stick, easy to clear stains and adhesives on the surface.
5.Good chemical resistance, it can resist most of chemical medicines, acids, alkalis, and salt, it is fireproofm, anti agin


PTFE Belting

Ruida manufactures various of belts with its material of smooth ptfe fabric,ptfe mesh, kevla, silicon rubber etc to custom specifications, depending on each customer’s individual needs. To help determine the best belt for your unique application, you need provide the following information for our experienced technical manager to discuss your requirement.


Ordering Your Ruida Belt
Whenever possible, have the following information available:

     * Dimensions of belt: width and length
     * Desired splice, edge reinforcement and tracking devices, where needed
     * Pulley size and type
     * Any special construction or instructions concerning the fabrication of your Ruida belt. In some cases of
       complex fabrication,a print may be requested.


Choosing the Right Material
There are a number of factors to keep in mind when choosing the belting material for your application:

     * Temperature Range – Our ptfe fabrics have the capabilities of withstanding -70°C- +260°C constant operating temperatures.
     * Pliability – If the material is to track around pulleys that drive the belt, the diameter of the pulley is critical. The smaller the roller the more flexible the belt must be. Ruida’s thinner materials (0.010” and under) are more pliant than the heavier coated fabrics.
     * Release Qualities – The surface finishes of our materials range from a rough, semi-porous finish to a super smooth surface. The release or fabric impression results desired will be a determining factor.
     * Strength – Options to be considered are breaking, tensile and tear strength. How much of a load the belt carries, how fast it moves and how tightly it will be tensioned all must be considered.


Fabric Grades
Learn more about the various fabric grades available when constructing your belt.


Applications
Learn about the different applications for ptfe coated fiberglass ,silicon coated glass tapes, fabrics and belts.


Fabrication Options
Learn more about the many options available for constructing your Ruida conveyor belt.

Metallic Splices

Alligator Splice
Ruida offers #1A galvanized or #1A stainless steel alligator splices. These splices are the most durable and are the easiest to use. Belts utilizing alligator or clipper splices can be installed without taking machinery apart. A coverflap can be added to reduce heat transfer to your material.

Clipper Splice
stainless steel clipper splices. These splices are the most durable and are the easiest to use. Belts utilizing clipper and alligator splices can be installed without taking machinery apart. A coverflap can be added to reduce heat transfer to your material.

Non-Metallic Splices

Peek Splice
Peek splices are an ideal choice when metallic splices cannot be used. Either a peek splice or a smartloop splice should be chosen when maximum airflow is desired.

Smartloop Splice
Smartloop splices are an ideal choice when metallic splices cannot be used. Either a peek splice or a smartloop splice should be chosen when maximum airflow is desired.

Fabric Notch Splice
A fabric notch splice is similar to the alligator splice but completely eliminates the metal clip. It uses a PTFE Kevlar(R) material with a special pin for joining.

Endless Splices

Butt Splice
The ends of the belt are butted together and joined by sealing a strip of reinforcing fabric under the butted ends. Butt splices provide the smoothest belt surface at the joint and eliminate the step-down surface which is characteristic of the overlap splice.

Overlap Splice
This is the standard splice for most applications. Overlap splices, normally cut and overlapped on a 90, 60 or 45 degree angle, are also commonly used since they are more flexible when running on smaller diameter rollers. Standard overlap splices are 1".

Scarfed Splice
To prepare a scarfed splice, the ends of the belt are "scarfed", or sanded down and joined eliminating the double thickness at the splice which is characteristic of the overlap splice, and eliminates the need for a heat-sealed reinforcement at the splice characteristic of the butt splice.


Edge Reinforcements
Taconic belts can be supplied with strips of heat-sealed film or fabric on one or both edges of your belt. This reinforcement serves a dual purpose; it reduces fraying of belt edges which rub on guiding rollers and it also provides the strongest possible anchor for guiding pins, snaps and grommets.


TFE-Film Edge, Heat-Sealed
TFE film edges are heat-sealed to the top and bottom of the edges of the belt for a 1/2" or 1" (standard)

surface. The TFE film is available in 3 mil, black or clear, or 10 mil tan (1" surface only).

Fabric Edge, Heat-Sealed
Six mil fabric is heat-sealed to the top and bottom of the edges of the belt for a 1" (standard) or 2" surface. Fabric edges are available either tan or black.

Fabric Edge, Sewn & Sealed
For extra reinforcement, our six mil heat-sealed fabric edge can also be sewn if desired. This reinforcement is commonly used on open mesh belting..


Two-Ply Belts
Two-ply belts are constructed of two plies of TFE-GLASS™, laminated together with staggered splices. This provides a smooth, continuous thickness along the entire belt length which guarantees a uniform seal in packaging and heat-sealing applications. The belts are typically available in widths of ½" – 3".
